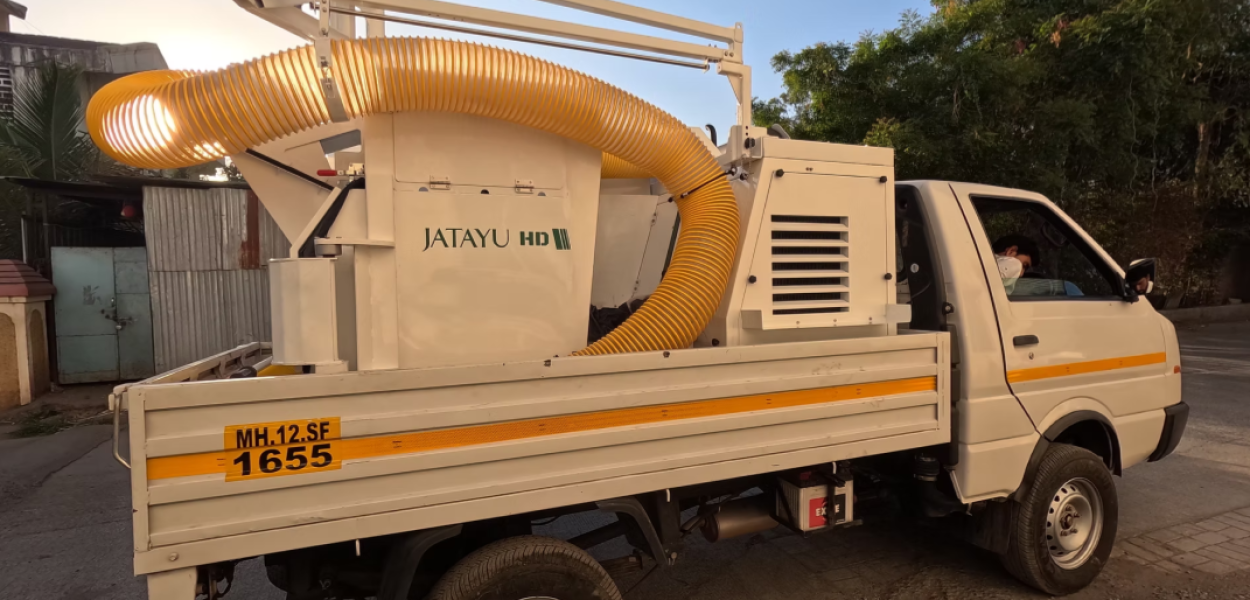

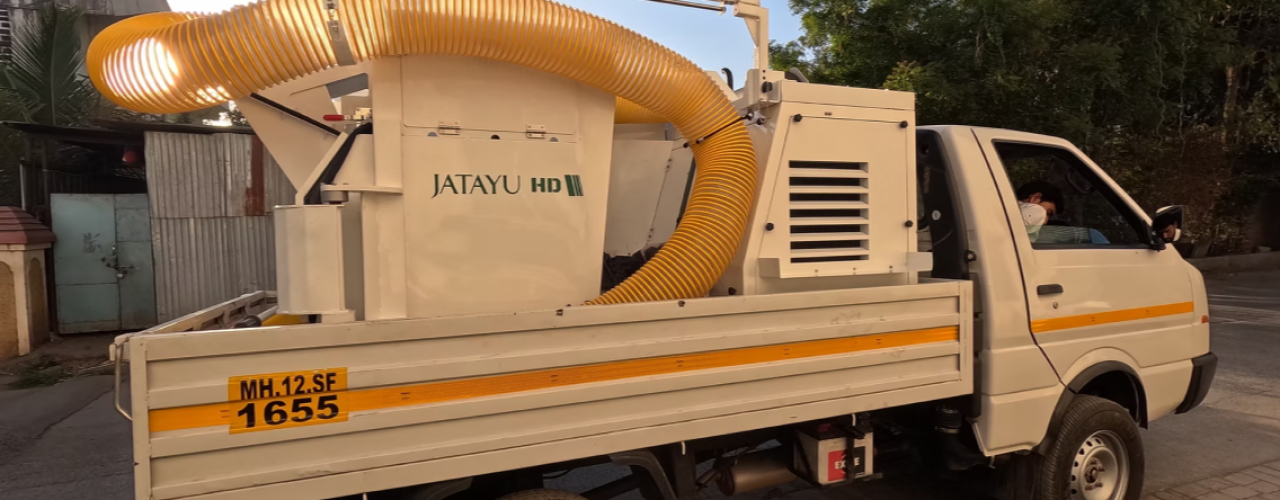

Compact, lightweight vacuum litter collector. Ideal for tight lanes, vehicle-mounted flexibility, and budget- conscious cleaning projects.
Tech at a glance
Independent engine with variable RPM
Compact but capable, Jatayu HD features a diesel engine with an RPM range optimized for focused cleaning. It’s light enough for flexible mounting and powerful enough for tough litter, making it ideal for targeted operations without compromising performance.

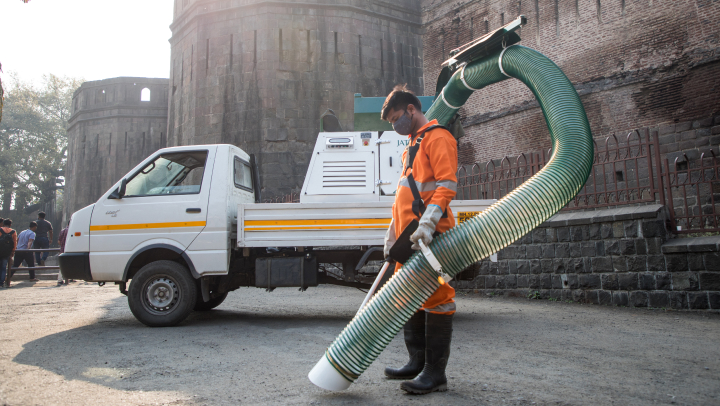

Fan-safe operations
Fan Safe Operations are all about ensuring the suction fan operates within its safe limits, even in unpredictable working environments. Designed to protect the suction fan from overload, pressure instability, and overheating during variable or high-dust conditions. While many modern machines now include some form of fan protection, Jatayu’s system works in tandem with its filter design and variable RPM control, making it part of a robust, integrated approach to dust management and system longevity.
PM10 filter
A PM10 filter is a specialized air filter designed to capture particulate matter that is 10 microns or smaller in diameter, such as fine dust, road particles, and airborne pollutants. Made from pleated, high-surface-area filter media, it traps these fine particles before the air is discharged. This ensures that the machine doesn’t re-pollute the environment while operating and helps release cleaner, safer air, protecting both the operator and the surroundings.
Benefits of Jatayu HD
Increased safety & dignity
Contactless cleaning: Suction-based litter pickup replaces manual handling of waste, reducing exposure to infection, injury, and biohazards.
Worker protection in tight zones: Operates safely in narrow lanes, eliminating the need for workers to bend, scoop, or enter dump zones.
Restores dignity: Gives frontline workers joystick control and safety in zones where only manual tools existed before.
Cost & time savings
Reduces labor needs: Replaces multiple sweepers per ward with a single operator and compact machine.
Fuel-efficient & easy to deploy: A lightweight build and modular mounting make it ideal for short runs across scattered urban sites.
Budget-friendly scaling: Bag-based collection, low fuel use, and minimal oversight make it sustainable for smaller towns and tight budgets.
Built for real-world challenges
Modular design: Can be mounted on carts, pickups, or trailers. Suited for alleys, small wards, and complex layouts.
Handles varied waste: Removes dry litter, food waste, coconuts, and plastic rags without clogging or downtime.
Compact, powerful & easy to use: One trained operator can manage the machine with minimal setup and supervision.
Uptime & aftersales reliability
Spruce Up Genie: Service and troubleshooting support over WhatsApp for quick local response.
Onboarding Support: Daily routines and checklists set up by our team for smooth handoff and consistent maintenance.
Spruce Up Parts Shop: Mission-critical spares are always in stock and dispatched within 24 hours to slash downtime.
Warranty & AMC Plans: Manufacturer warranty from day one and tiered Annual Maintenance Contracts for scheduled servicing, wear-part coverage, and priority emergency support.
Applications
Nagar Palikas and Panchayats

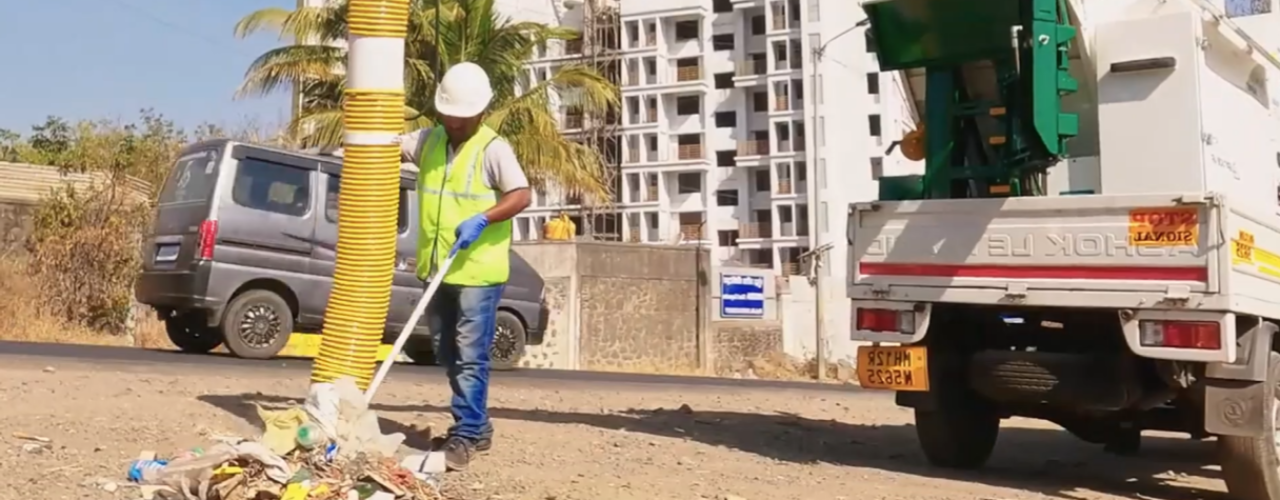

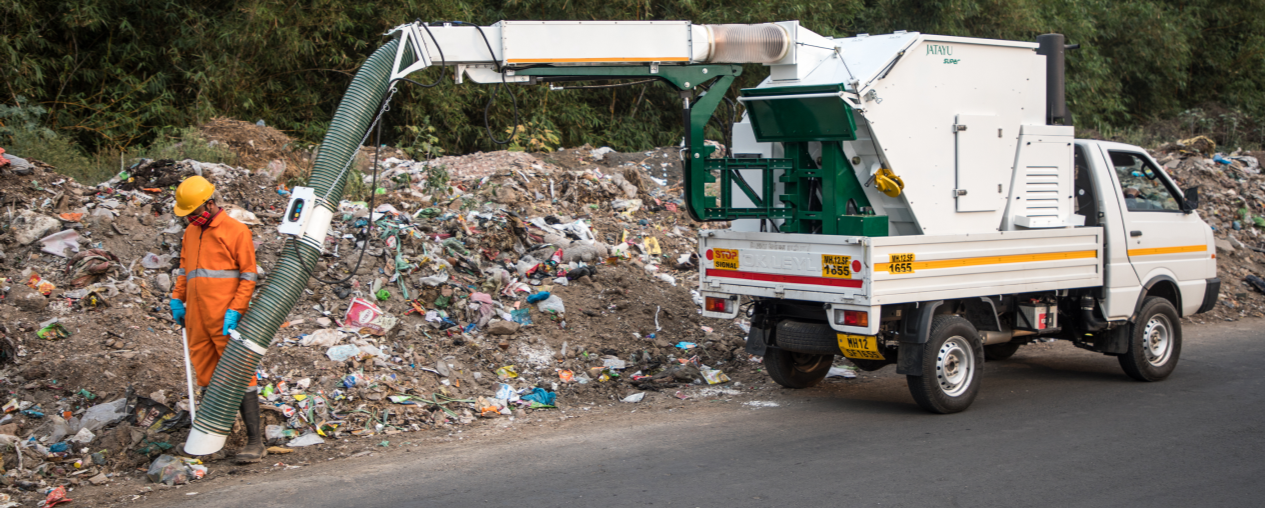

In small towns and villages, litter often accumulates around public areas such as bus stops, weekly markets, schools, and temple entrances. With limited staff, scattered waste points, and mostly manual tools, cleaning is irregular and often delayed, especially after events or during peak hours.
Manual collection exposes sanitation workers to a mix of waste, dust, and hazardous materials. In many rural areas, this includes plastic wrappers, food waste, cloth scraps, and open-dumped garbage. A compact, contactless litter picker, like Jatayu HD, offers a safer and more efficient alternative, allowing frontline workers to remove waste without direct contact.
Gram Panchayats typically operate with constrained resources, small budgets, basic vehicles, and minimal technical staff. Jatayu HD mounts easily on local vehicles, such as tractors or LCVs, and uses quick-change, reusable bags for easy disposal. It requires no specialized operation or infrastructure. It enables panchayats to maintain cleaner public spaces with fewer workers, faster turnarounds, and better hygiene outcomes.
Small and mid-sized industries
Small and medium-sized industries still need to maintain clean loading areas, approach roads, and worksite perimeters—yet relying on manual labor for these repetitive tasks often proves costly and inefficient.
While these facilities may not generate large volumes of bulk waste, they deal with frequent, scattered debris like plastic wrappers, paper cups, packaging bits, or dry leaves. Cleaning this with brooms or manual tools is time-consuming and pulls staff away from core operational work.
Jatayu HD offers a compact, easy-to-deploy solution for light-duty, high-frequency cleaning needs. It handles surface litter quickly and can be operated by a single person using existing facility vehicles like trolleys or e-rickshaws. Quick-change reusable bags and low-maintenance needs suit industrial teams looking to improve daily upkeep without investing in large machines or overextending manpower.
Detailed tech specifications
| Dimensions | Length | 2510 mm |
| Width | 1510 mm | |
| Height | 1675 mm | |
| Variable storage capacity | Custom 0.4 Cu.m collection bags | |
| Engine | Efficient 20 hp diesel auxiliary engine | |
| Liquid Cooled | ||
| Maximum Air velocity | 9879 FPMbn | |
| Maximum air velocity | 9879 FPM |
Comparative gains table
| Factor | Jatayu HD | Manual litter picking | Local & imported litter pickers/niche products |
|---|---|---|---|
| Suction Power & Airflow | High - strong vacuum suction for wet, dry, heavy waste | None - only manual collection is possible, unsafe for humans |
Local: Low - weak motors or blowers often just move debris Imported: Medium - basic suction; clogs with heavy or wet waste |
| Collection Capacity & Method | Medium - reusable ~0.4 m³ bags, vacuum collection; fast swap system, no contact with waste | Low - hand-picked into bins or bags, limited volume |
Local: Low - small bins; frequent emptying needed Imported: Medium - moderate bin size; fills quickly, manual unloading |
| Boom / Nozzle Reach & Flexibility | High - manual, assisted overhead boom flexible suction hose system | Low - manual bending, crawling, reaching |
Local: Medium - Fixed nozzles, limited flexibility Imported: Medium - Fixed or short hoses |
| Waste Compatibility | High - handles mixed, wet, dry, bulky and organic waste | Medium - physically possible but time-consuming and unsafe |
Local: LOW - only for dry light litter Imported: Medium - works for dry; struggles with wet or heavy waste |
| Run Time / Shift Duration | High - full shift capable; fuel-driven | Low - worker fatigue and absenteeism affect hours |
Local: Medium - limited by a small tank, battery, and overheating Imported: Medium - battery endurance and load heaviness affect how fast they consume energy |
| Operator Comfort & Usability | High - simple, rugged, designed for Indian rough use | Low - human factors like absenteeism, unions |
Local: Low - no service system; DIY fixes are common Imported: Low - custom repairs, part challenges |
| Service & Spare Parts Availability | High - local stocking, quick support | Not applicable |
Local: low - no structured service, unreliable Imported: low - parts are usually imported, subject to customs delays and limited service providers |
| Return On Investment (ROI) | High - Predictable shifts, low manpower, fast payback | Medium - Low upfront, but productivity is inconsistent |
Local: Low - short lifespan, frequent breakdowns Imported: Medium - acquisition cost high, downtime due to difficulty in sourcing parts and expensive maintenance |
FAQs

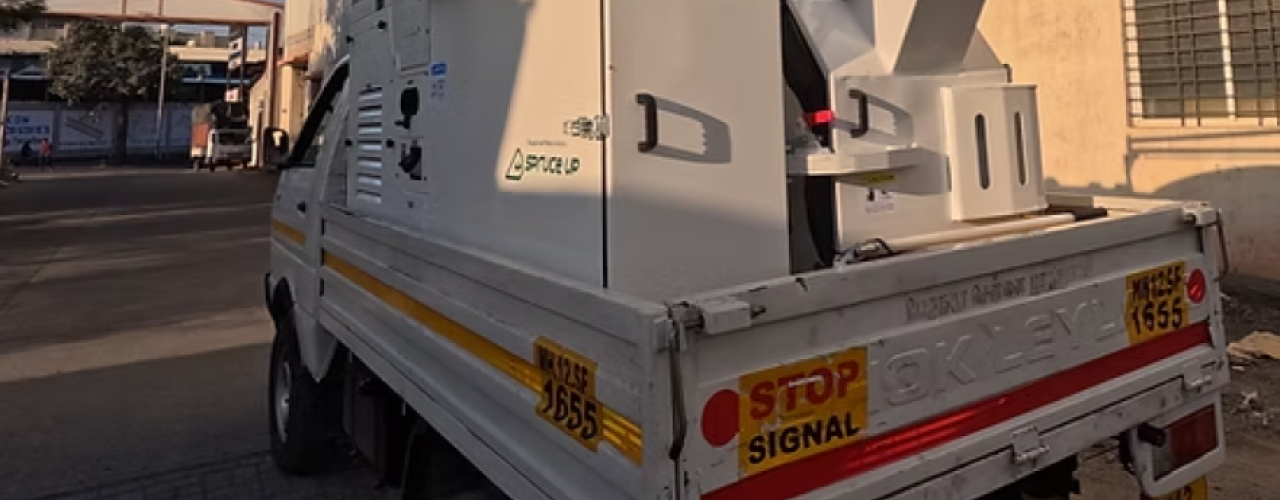

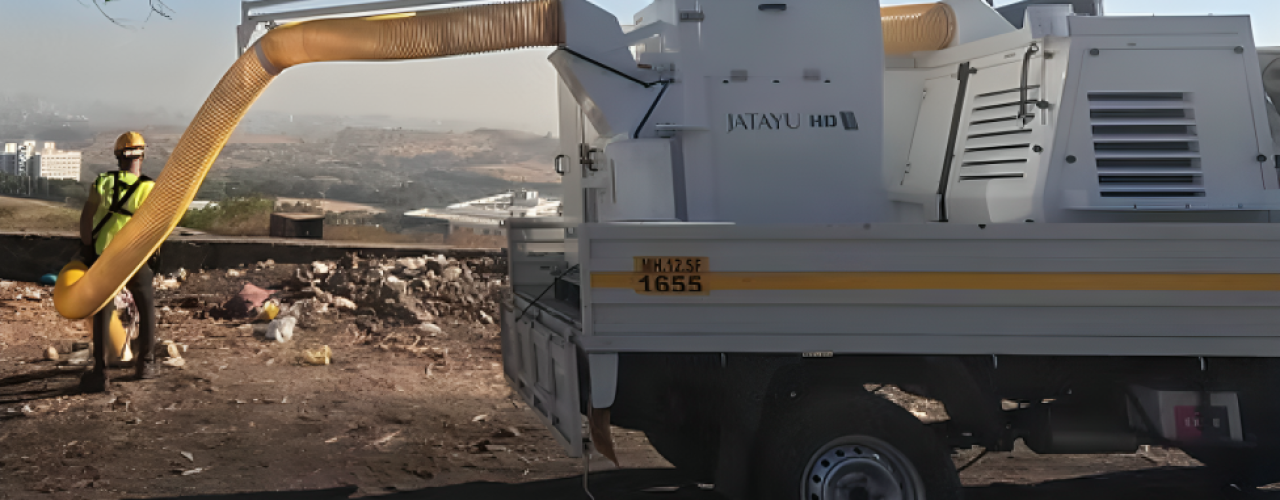

Jatayu HD offers versatile, modular mounting options. It can be mounted on most standard Light Commercial Vehicles (LCVs) available in the Indian market, as well as tractors. Our team assists with vehicle compatibility and installation support during deployment

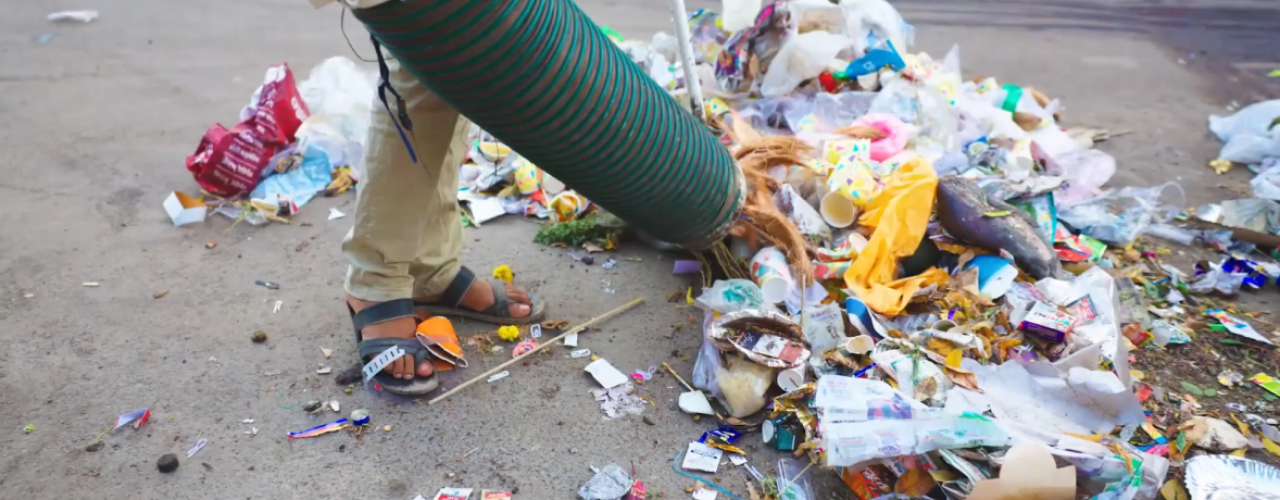

Jatayu HD effectively handles wet, dry, and mixed waste, including food debris, plastic wrappers, leaves, paper, and even bulkier litter such as coconuts. Its powerful vacuum ensures consistent collection without frequent clogging or downtime.
No specialized technical skills are needed. Jatayu HD is designed for easy operation with minimal training. Our team provides initial onboarding and helps your staff adopt simple daily maintenance routines, ensuring long-term ease of use and minimizing downtime.
Absolutely. Jatayu HD’s compact footprint and flexible hose system enable it to access narrow lanes, tight corners, and congested areas with ease, ensuring effective cleaning where larger machines cannot reach.
We maintain a robust local inventory for essential spares, ensuring dispatch within 24 hours. Our Spruce Up Genie service provides quick troubleshooting and support via WhatsApp, ensuring minimal downtime even in smaller towns and remote locations.
