Elevated hopper design for smart waste discharge

Introduction

Emptying or dumping is the hidden bottleneck of every vacuum litter-picker: the heavier the load and the farther the drive to a dumpyard, the longer operations take, and productivity nosedives. In the world of vacuum litter pickers, suction is only half the job; the other half is getting rid of what you’ve collected. And that’s where most machines fall short. Emptying or dumping is the hidden bottleneck no one talks about. Whether it’s overloaded bags, endless trips to the dump yard, or roadside tipping that defeats the purpose of cleaning, the real challenge isn’t just in picking up litter; it’s in finishing the job cleanly. This is where the Jatayu Super stands apart.

Read more

What most machines get wrong about dumping

Many compact litter vacuums rely on plastic or fabric collection bags, usually fitted inside a rear bin or under a hopper. As the machine collects waste, litter is directed into the bag, which is later tied off and removed manually. It’s meant to be simple: fill the bag, tie it, swap it.

Challenges:

In Indian conditions, this system quickly becomes a problem. Mixed litter is heavy, wet, and bulky. A full 120- 150 liter bag often weighs over 20 kgs. That is too much for a single operator to lift safely. Bags tear, spill, or soak through. Worse, there’s rarely a proper drop point on-site. Operators either walk far to find a dump, leave the bag on the street, or partially dump and reuse the same bag. All of this slows the workflow and puts pressure back on manual labor.

Machines with fixed hoppers but no high-dump system often face a tough choice. Once full, they either drive to a centralized dump yard, usually kilometres away, or they tip the waste onto the roadside in the hope that a municipal tipper or manual crew will collect it later.

At formal disposal points, operators may have to wait in line, use a weighbridge, and go through the full dumping protocol. A single round trip can easily stretch up to 2 hours. The alternative: street dumping, is a shortcut used to keep operations moving, but it comes at the cost of hygiene and accountability.

Challenges:

Neither path solves the real problem. Travelling to dump yards takes the machine off-route, burns fuel, wastes manpower, and drastically reduces sweeping coverage. In some cases, up to 4 hours of an 8-hour shift can be lost just to dumping. Meanwhile, dumping on the street defeats the entire purpose of mechanised cleaning. The litter gets scattered again by wind, traffic, animals, or ragpickers, requiring manual cleanup and adding avoidable labour costs. In both cases, the machine may have done its job, but it looks like it didn’t, because the waste was never properly cleared from the site.

Designing a high-dump system isn’t easy. It requires:

  • A stable chassis that won’t tip when lifting a full hopper
  • A robust hydraulic assembly that can raise and tilt safely, every time
  • Reinforced frame and load-bearing structure to handle dynamic weight
  • Careful balancing of weight, cost, and field-serviceability

That’s why many machines in the market (even premium ones) skip high-dump altogether. It keeps manufacturing simple, but passes the pain onto the operations.

Jatayu Super solves the dumping bottleneck

Jatayu Super takes the harder route in engineering, so the field team has an easier, faster, safer workflow. Jatayu Super doesn’t treat dumping as an afterthought; it’s engineered around it.

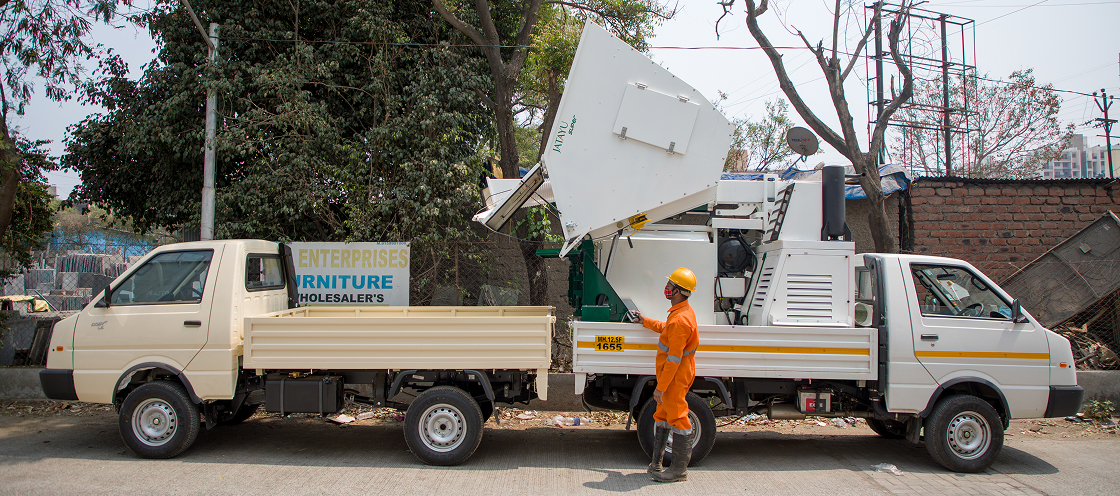

At the heart of its design is a 1.6-meter hydraulic high-dump hopper that directly addresses all of the dumping issues and is considered an exclusive advantage in Jatayu Super

Benifits

This engine powers a high-speed suction blower capable of lifting dense, wet, and heavy debris. Most battery- operated or vehicle-powered systems struggle with even basic litter, like dry wrappers or plastic cups. JATAYU, with its 20 HP diesel engine, pulls up wet coconut shells, fabric waste, and glass bottles without performance drops. Because the vacuum system is self-contained, it can be mounted on any vehicle platform that can safely support its weight along with the litter it is designed to collect. This allows for deployment flexibility without being restricted to one specific vehicle type, making it a powerful and adaptable solution for varied ground conditions and operational needs.

By eliminating collection bags, Jatayu Super removes the most painful part of daily operations: heavy bag lifting, tearing, leakage, and dust exposure. Operators no longer have to wrestle with overfilled sacks or walk around looking for a place to dump them. The high-dump hopper holds more, handles all waste types, and empties without a single manual touch.

Jatayu Super eliminates the two most common failure points in dumping: long-haul trips to centralized yards and unsightly dumping on the roadside. With its 1.6-meter high-dump system, the machine doesn’t need to leave the sweeping route. Instead of traveling to a dump yard, the transfer vehicle comes to the machine, or at most, the machine meets it a short distance away. This enables immediate, on-the-spot waste transfer into any available tractor-trailer, tipper, or support vehicle, without queues, weighbridges, or delays.

Because of this, Jatayu Super stays in continuous operation, collecting more and covering more in the same shift. While traditional machines may only manage 1,000 kg per shift due to downtime, Jatayu Super can handle up to 3,000 kg, simply because it doesn’t waste hours moving waste. And since dumping happens directly into a vehicle, there’s never a need to leave litter on the street. The waste is lifted, dumped, and gone quickly and completely. No mess, no rework, no manual crew circling back. Just a clean break from the problem.

Dumping is not a side feature; it’s the critical final step of every litter collection cycle. When that step is slow, manual, or inefficient, the entire system suffers. With its robust high-dump system, Jatayu Super removes the friction, fatigue, and failures built into most machines. It’s not just about lifting waste; it’s about lifting the standard for what a litter vacuum should do.

In Indian cities where every minute, every meter, and every operator counts, Jatayu Super doesn’t just clean better, it dumps smarter.
